ASDSO Dam Safety Toolbox

Siphons when regular releases aren't needed

From ASDSO Dam Safety Toolbox
Jump to: navigation, search

Message: Siphon systems are an option for reservoirs that don’t make regular releases. Easy to construct and avoid the need for a penetration through the dam.

This central Montana reservoir use was changed from irrigation to recreation. As a result, there was no longer a need to make periodic releases. During rehabilitation, it was decided abandon the outlet and use a siphon. This eliminated the need to have a penetration through the dam and still provided emergency drawdown. Note that siphons have an operational limit depending on elevation and height of the dam.

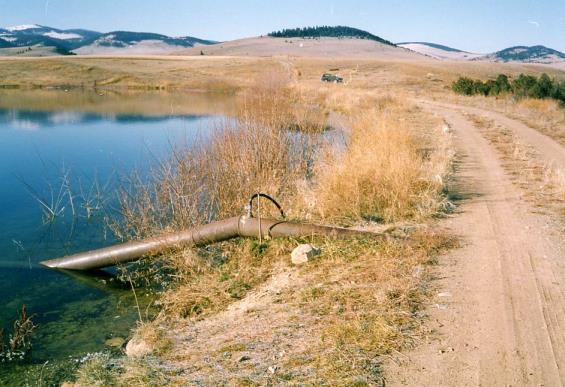

This siphon was added after it was determined it was unnecessary to make periodic releases.


Note: The content on this page was originally created as part of DamOutletWorks.org (DOWL, 2018). It has subsequently been updated and reformatted as part of the Dam Safety Toolbox.
Revision ID: 4743
Revision Date: 12/02/2022
